About coated aluminum coil

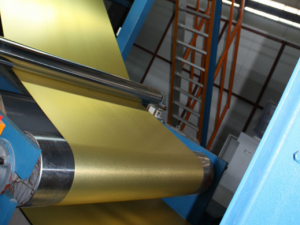

About coated aluminum coilCoated aluminum coil refers to the aluminum coil goes through coating and coloring treatment which generally includes PE coated and PVDF coated. Coated aluminum coil is widely used to manufacture aluminum composite panel, aluminum ceiling, roofing, aluminum veneer, signboards.
PVDF Coated Aluminum Coil Quick Details
| Alloy | 1100, 3003, 5005, 1050, 1060, 1070, 3102, 8011, 3A21, 3105, 8079 |
| Aluminum thickness | 0.02mm-1.2mm |
| Aluminum max Width | 2200mm ( standard width: 1240mm ) special width such as 1300mm, 1520mm, 1570mm,1595mm are also availible |
| Coil’s standard diameter | interior diameter: 150mm, 405mm, 505mm |
| Coating finish | PVDF , PLOYESTER , ACRYLIC ACID |
| MOQ | 5 tons per size |
| Gloss | meet the customer’s requirement |
| Total coating thickness | PVDF coating : more than 25 micron |
| Coating adhesive | no lower than first grade |
| Impact resistance | no cracking and peeling (50kg/cm, ASTMD-2794:1993) |
| Outer packing | export standard, wooden pallet |
Features of PVDF Coated Aluminum Coil
- Excellent weather-proof durability
- Anti-ultraviolet
- High erosion resistance
- Stable color and gloss
- Good mechanical processing performance
- Abrasion resistance
- Anti-impact
- High flexibility
Application of PVDF Coated Aluminum Coil
- Exterior applications such as: wall cladding, facades, roofs and canopies, ACP, tunnels, column covers or renovations etc.
- Interior applications such as: wall cladding, ceilings, bathrooms, kitchens and balconies etc.
- Advertisement and market applications such as: display platforms, signboards, fascias and shop fronts etc
- Transport and industry application etc
Classification of Coated Aluminum Coil
As per types of surface coating of paint, color coated aluminum coils can be divided into polyester (PE) coated aluminum coil, fluorocarbon (PVDF) coating aluminum coil and Epoxy coated aluminum coil.
